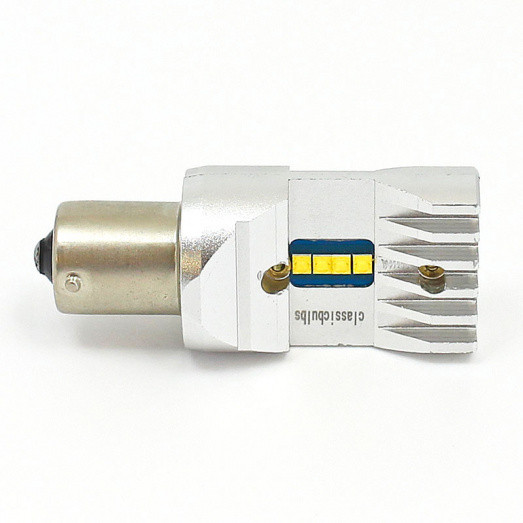

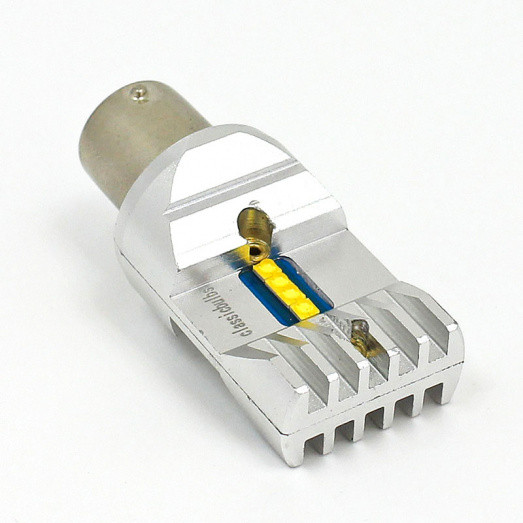

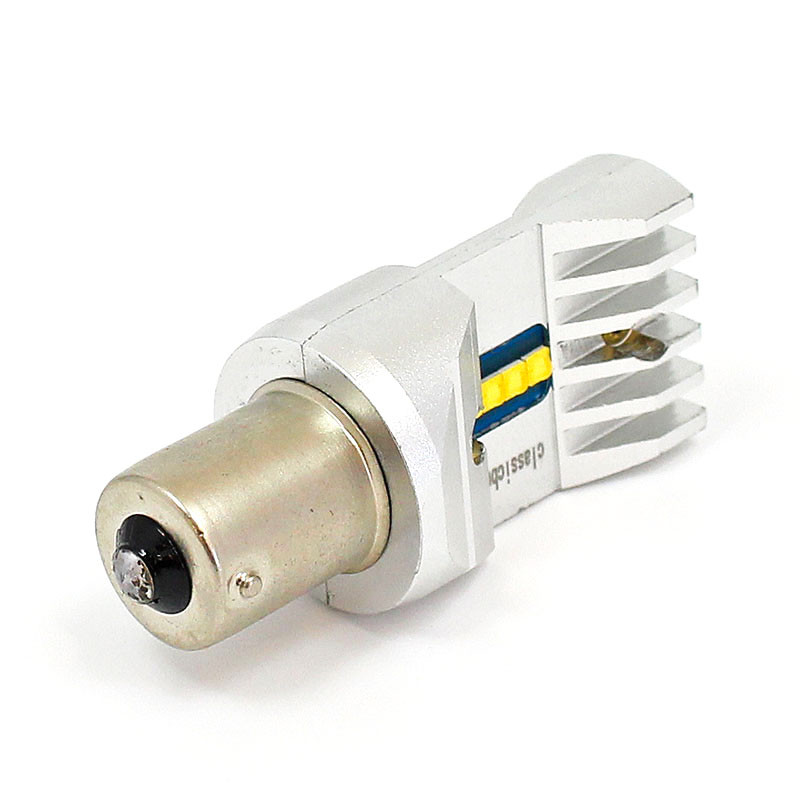

Warm white High quality 8 x Cree 2525 (with heatsink) LED upgrade for SCC BA15S head and spot lamp bulbs from the '20s to the '50s. Flexible application - suitable 12 or 24V vehicles and compatible with either negative or positive earth systems.
Vertical LED arrangement is equivalent to the axial filament. 1200 Lumen warm white beam with a soft beam pattern. Brighter than 12V incandescent bulb B2A (36W) in testing. Very low current draw - over 75% less than incandescent and halogen bulbs so great for low-powered, vintage electrical systems (800mA at 12V, 1.6A at 6V). 3000K warm, white colour temperature.
This bulb is a great LED upgrade alternative to a number of 12 and 24V bulbs from 24 to 36W including B1 and B2B. Made from aviation-grade aluminium. These bulbs don't have an integral lens so they can be used in tripod-type lamps.
Please see part numbers BA15SLED-S30AX-6P and BA15SLED-S30AX-6N for 6V positive and negative earth applications. See BA15SLED-S43AX for a brighter white alternative upgrade option for higher-wattage BA15S single axial filament bulbs.
| Base | Volts | Watts/Amps | Element | Colour | Application |
|---|---|---|---|---|---|
| SCC BA15S | 12, 24 | LED | Warm White | Headlamp |
