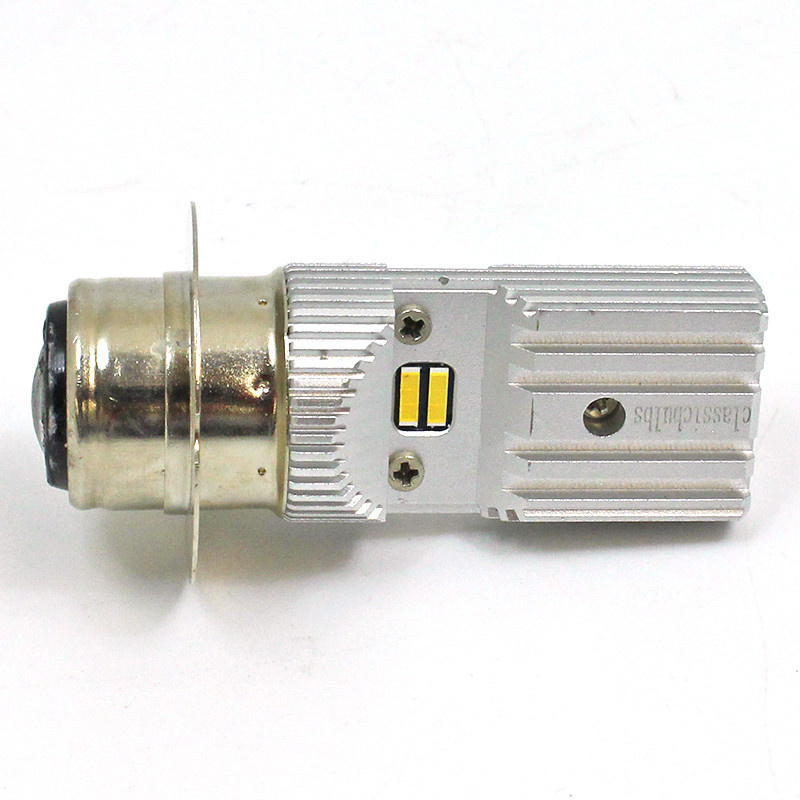

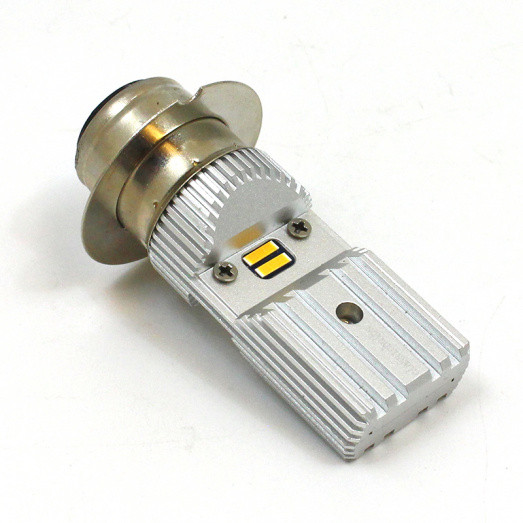

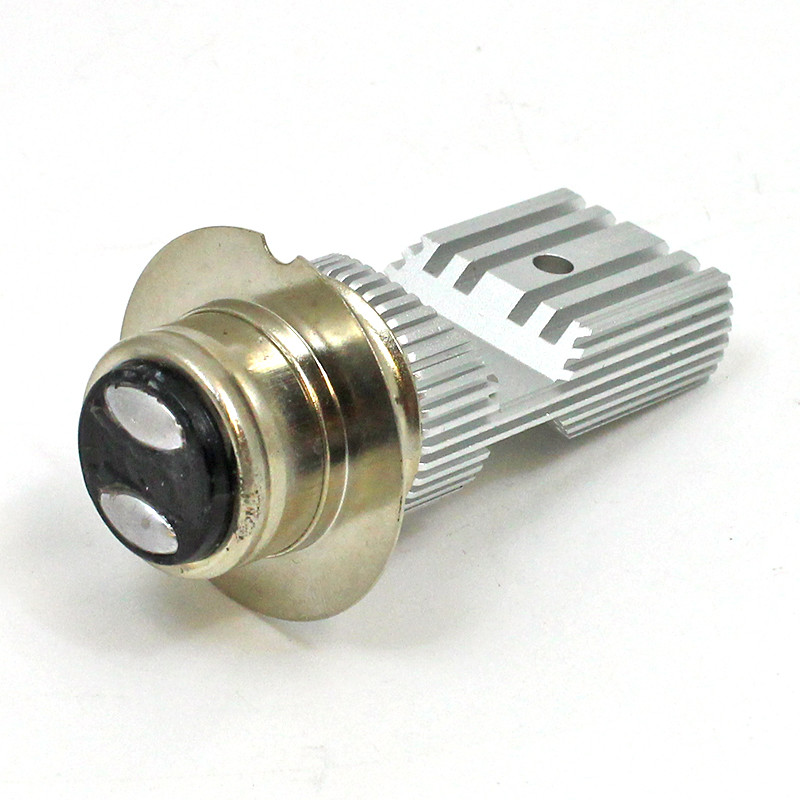

Warm White premium 6V LED Headlamp - BPF DC P36D base
High quality 16 x Cree 2525 (with heatsink) LED upgrade for British Pre-focus early head and spot lamp applications with the P36D base. 6 VOLT POSITIVE EARTH APPLICATION. High and low beam - 1800 Lumen high beam, 1200 Lumen low beam - with a soft beam pattern.
One row of LEDs lights up on each side of the bulb for low beam and both rows of LEDs lights up on both sides for high beam, replicating original, unshielded, twin filament bulbs such as B6721 type bulbs. In testing, brighter than incandescent bulbs rated at 24/30W, more comparable with 36/42W.
Very low current draw - over 75% less than incandescent and halogen bulbs so great for low powered, vintage electrical systems (800mA at 12V, 1.6A at 6V). 3000K warm, white colour temperature.
Suitable beam pattern for Tripod headlamps.
This bulb is a good LED upgrade alternative for unshielded twin filament 6V bulbs including B6721. It is not a suitable alternative to B306 and B312B as they have shielded filaments - the LED upgrade option for these bulbs is P36DLED-P43-6. Made from aviation grade aluminium. These bulbs don't have an integral lens so can be used in tripod type lamps. 59mm total bulb height. 12 x 25mm LED section. P36D cap 22mm diameter with 36mm diameter plate.
|BPF DC P36D
