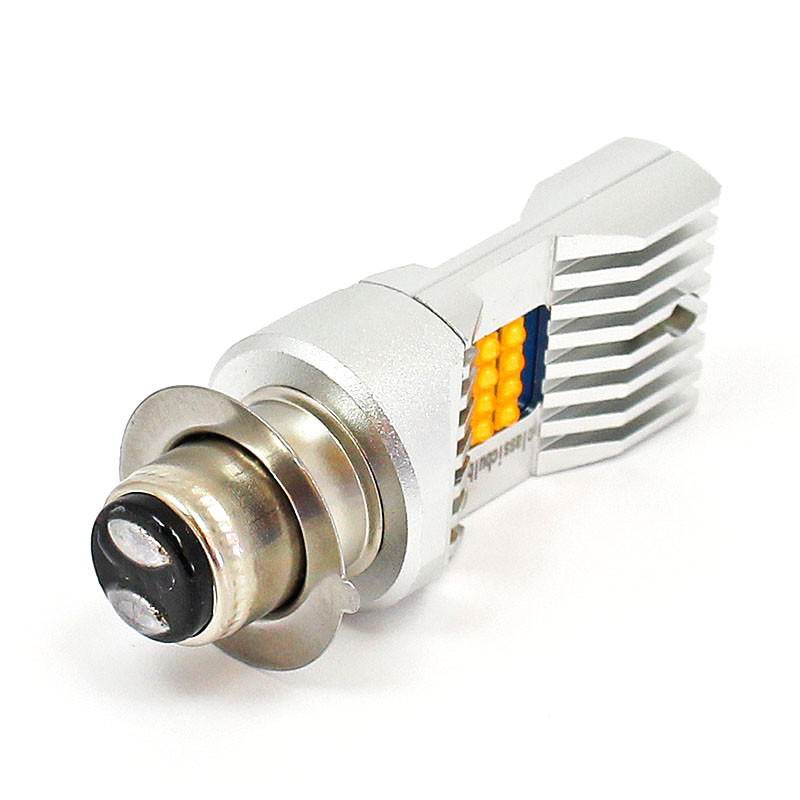

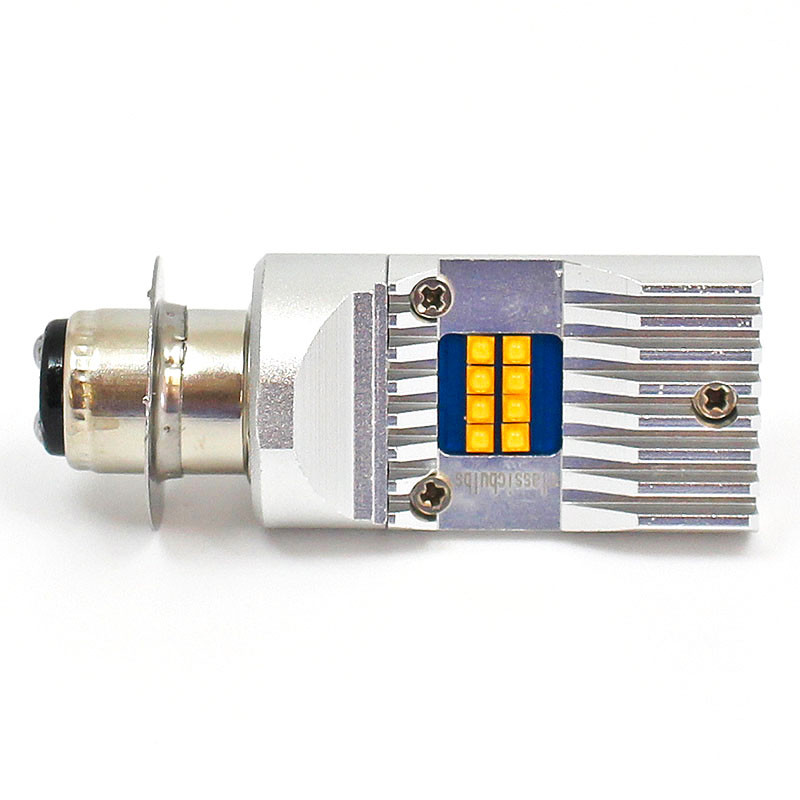

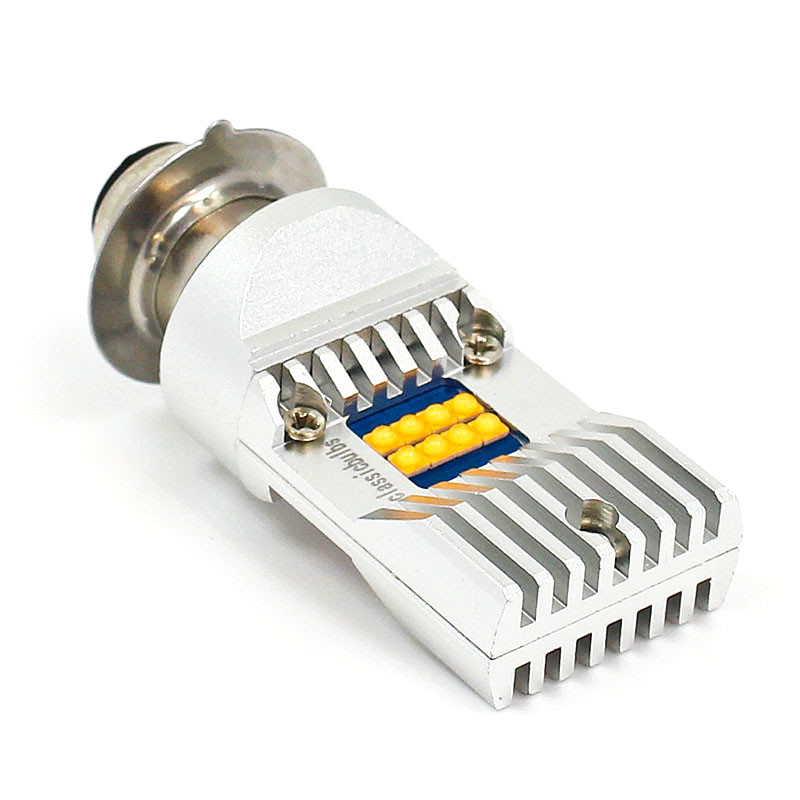

High quality 16 x Cree 2525 (with Hotsink) LED upgrade for PX15D lamps with the 25.1 base. 6 VOLT POSITIVE EARTH APPLICATION. High and low beam - 1800 Lumen high beam, 1200 Lumen low beam.
One row of LEDs lights up on each side of the bulb for low beam and both rows of LEDs lights up on both sides for high beam, replicating original, unshielded, twin filament bulbs. Very low current draw - over 75% less than incandescent and halogen bulbs so great for low powered electrical systems (800mA at 12V, 1.6A at 6V). 3000K warm, white colour temperature.
This bulb is a great LED upgrade alternative to a number of 6V bulbs from 15/15W to 30/30W including B3596, B3625 and B1065. Made from aviation grade aluminium. These bulbs don't have an integral lens so can be used in tripod type lamps. 64mm overall bulb height with 12 x 25mm LED section. 15mm diameter cap with 25mm diameter plate with one rounded locating tab. See PX15D25.1-H30-6N for negative earth version.
Base | Volts | Watts/Amps | Element | Colour | Application |
---|---|---|---|---|---|
T19 PX15D 25.1 | 6 | LED | Warm White | Headlamp |
