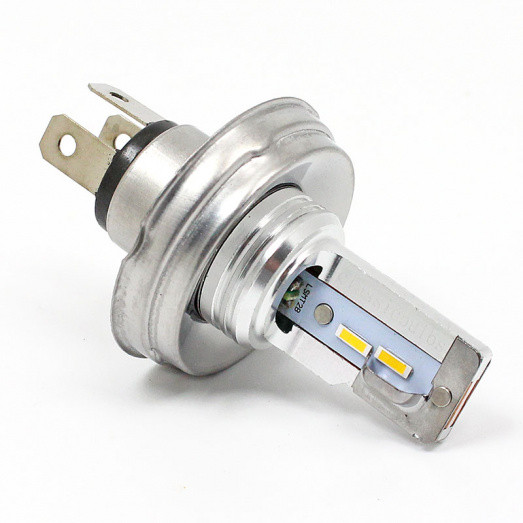

Classic White premium 12 & 24V LED Headlamp - H4 P45T base

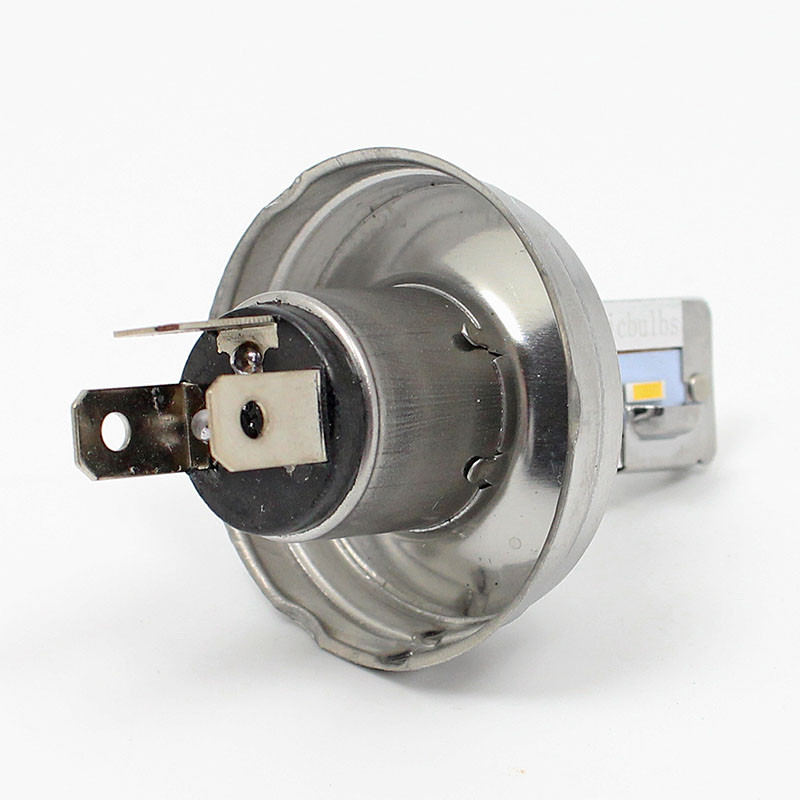

High performance CSP 1860 LED upgrade for H4 P45t type bulbs with the Continental, 46mm diameter turreted base with three spade connections. Integral heatsink. Accepts 11 to 60V input voltage - optimised for 12V, negative earth systems. High and low beam - 1600 Lumen high beam, 1600 Lumen low beam - with a soft beam pattern. In testing, brighter (LUX measurement at fixed distance) than B904 (45/40W) and comparable with BHB12 (60/55W).

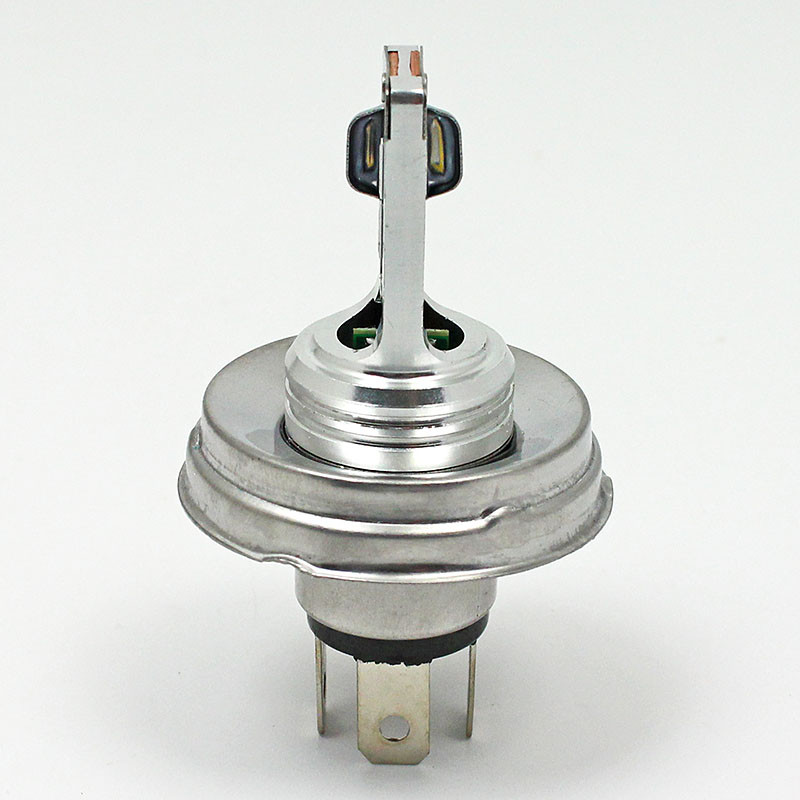

The LED layout is designed to match the original H4 filament layout including low beam filament shield. The lamp produces a good high and low beam pattern - with the dip pattern governed by the lamp lens. Very low current draw - over 75% less than incandescent and halogen bulbs so great for low powered, vintage electrical systems. 4300K classic, warm white colour temperature.
This bulb is a great LED alternative to a number of 12V bulbs including B904, BHB12 and BHB24. Made from aviation grade aluminium. These bulbs don't have an integral lens so can be used in tripod type lamps. Please see part number P45TLED-H43L for a classic white LED upgrade lamp with an integral lens. 82mm total bulb height.
