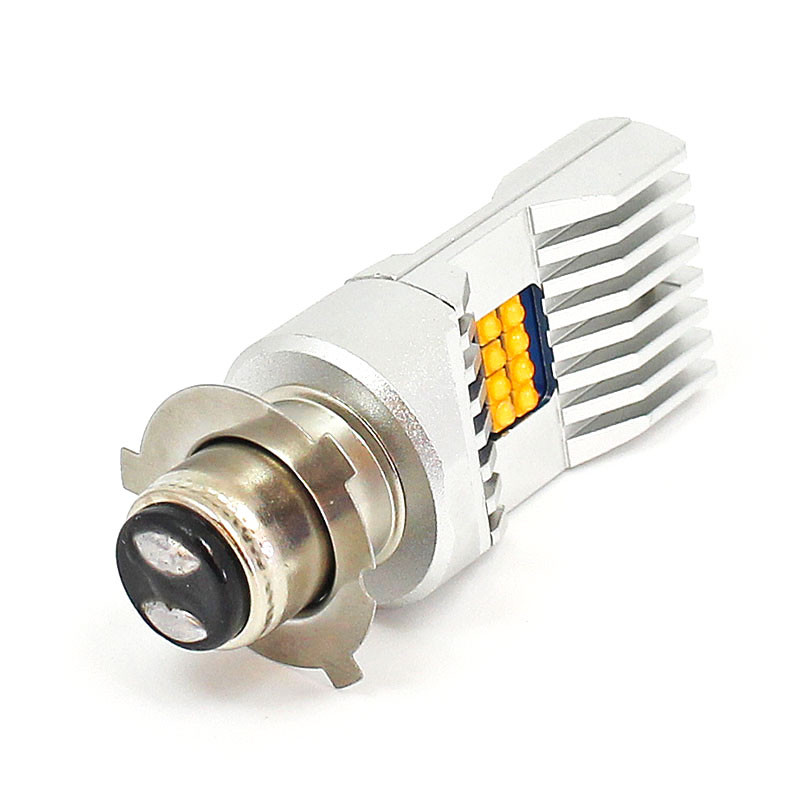

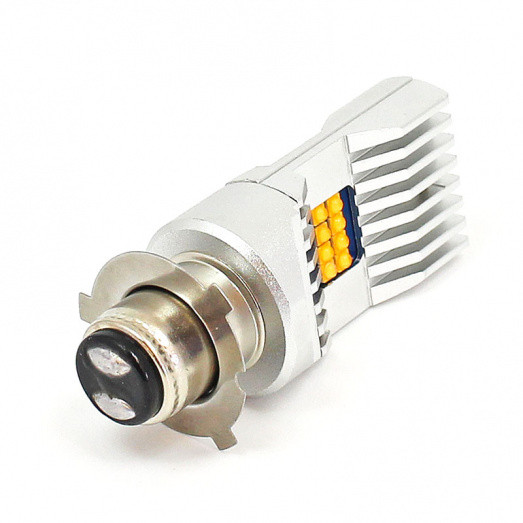

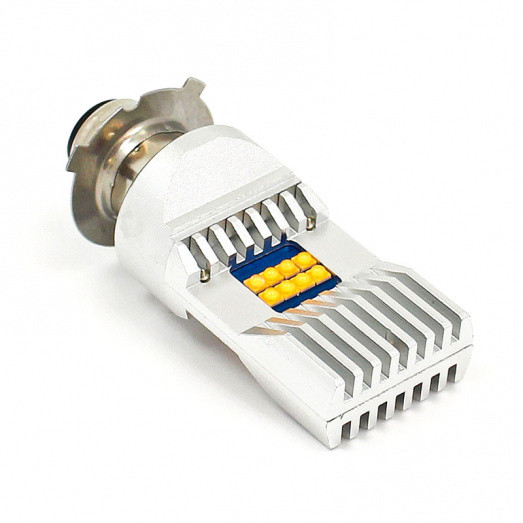

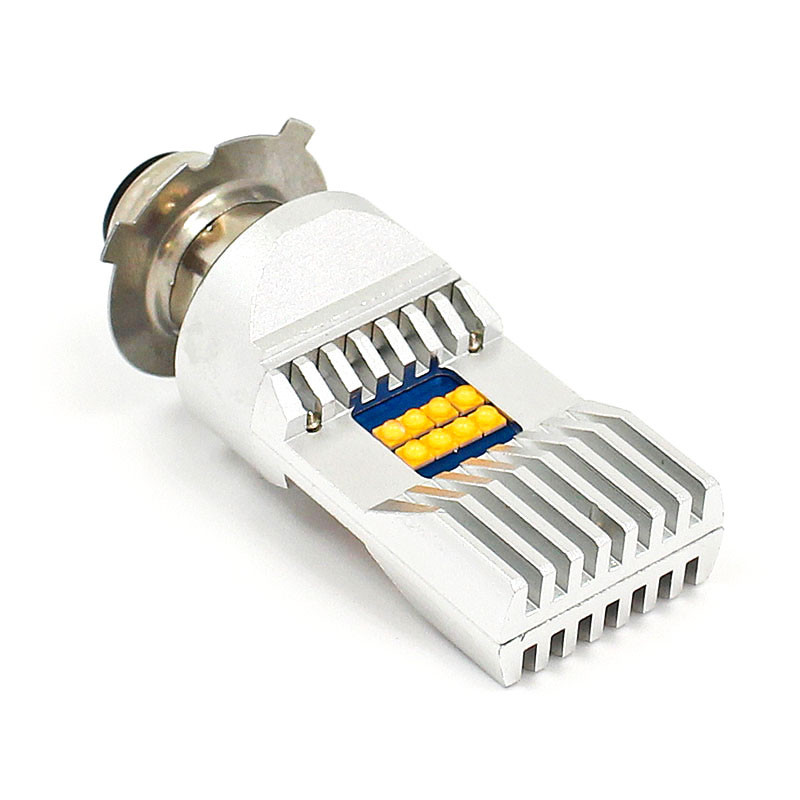

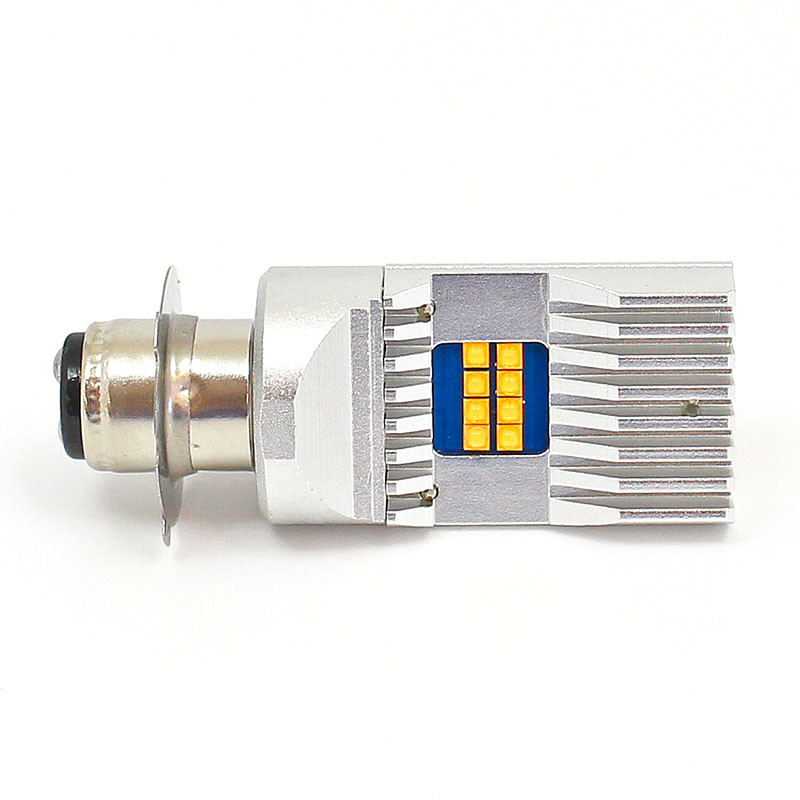

Warm White premium 12 & 24V LED Headlamp - P15D 25.3 base
High quality 16 x Cree 2525 (with heatsink) LED upgrade for P15D lamps with the 25.3 base. Flexible application - suitable for 12 or 24V vehicles and compatible with either negative or positive earth systems. High and low beam - 1800 Lumen high beam, 1200 Lumen low beam. One row of LEDs lights up on each side of the bulb for low beam and both rows of LEDs lights up on both sides for high beam, replicating original, unshielded, twin filament bulbs.
Very low current draw - over 75% less than incandescent and halogen bulbs so great for low powered electrical systems (800mA at 12V, 1.6A at 6V). 3000K warm, white colour temperature.
This bulb is a great LED upgrade alternative to a number of bulbs including B7024, B7025 and B7027. Made from aviation grade aluminium.These bulbs don't have an integral lens so can be used in tripod type lamps. Please see part numbers P15D25.3-H30-6P and P15D25.3-H30-6N for 6V positive and negative earth applications. 65mm total bulb height, 12 x 25mm LED section, 15mm double contact cap, 25mm pre-focus plate with three 4mm wide locating tabs and one hemispherical notch.
