Warm White & Red 12V LED Combined Stop, Tail & NP lamp - OSP BAY15D fitting

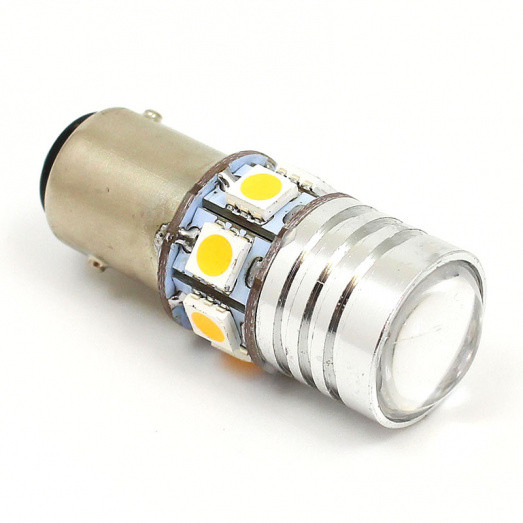

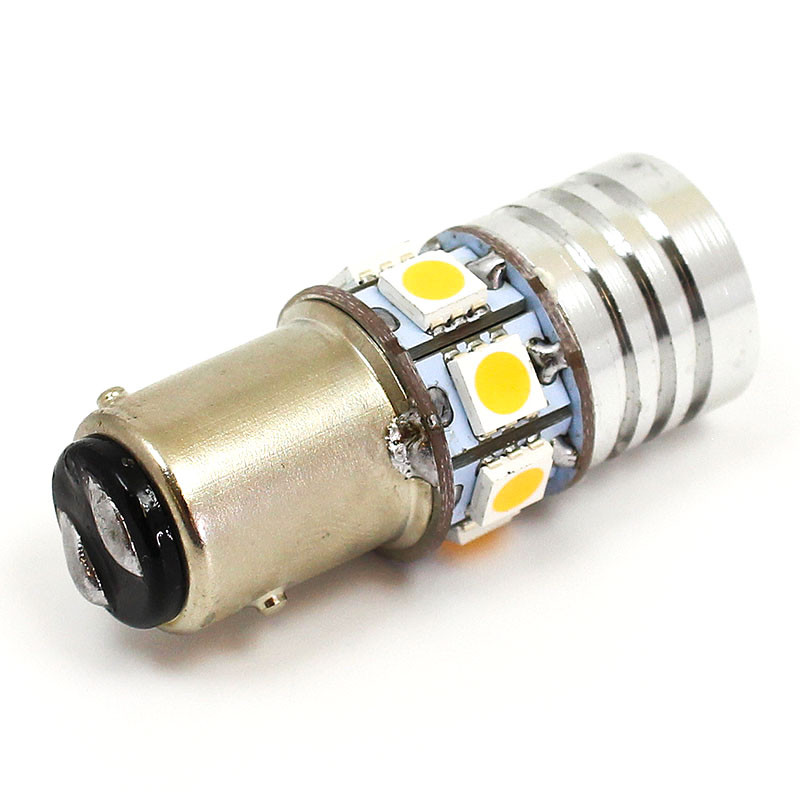

7 x 5050 SMD Warm White LED and 2 x High Power CREE LED combined Number Plate Illumination, Stop and Tail lamp. Multi direction bulb with 12 Volt application with offset pin BAY15D base and integral lens. 3000k warm white 360 degree light and bright RED colour temperature from 2 x Cree LEDS behind a lens.
Red and white lights illuminate for tail light/number plate illumination function - then RED light intensifies when the brake is applied. Good contrast between red stop and tail light outputs.

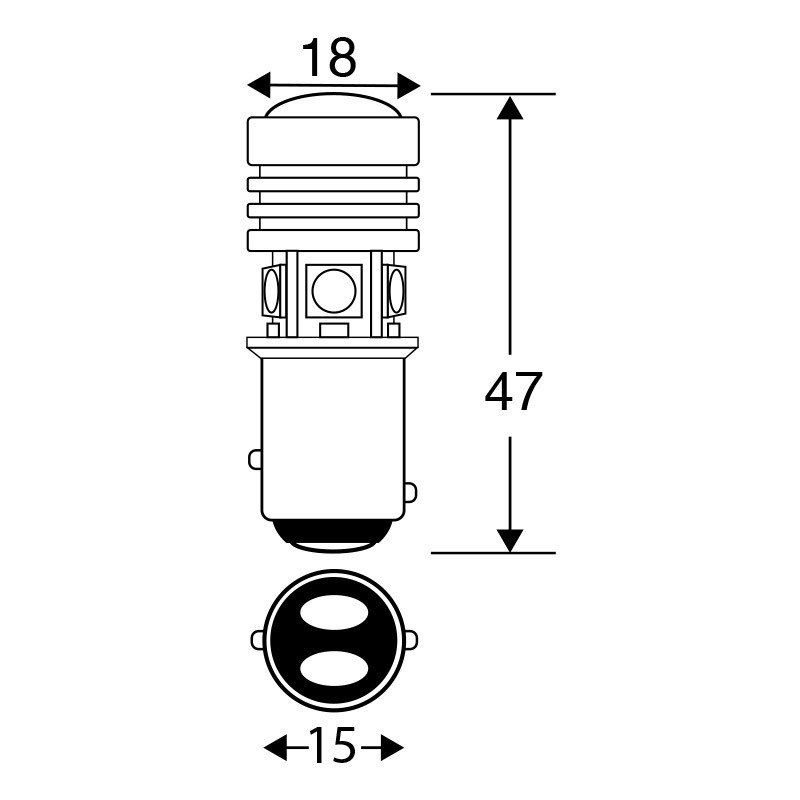

A great combination lamp. Compatible with NEGATIVE earth systems only. Very low current draw - over 75% less than incandescent and halogen bulbs so great for low powered electrical systems. 19mm maximum diameter, 50mm total bulb height.
Please take care when fitting these bulbs - hold by the base and the lower warm white LED board section - NOT the ribbed aluminium lens section - to avoid damage from twisting.
|Warm White & Red
|Combined Stop, Tail & NP
