Bulb Holders & Harnesses - American Pre Focus (APF) P15D 30 Bulb holder

American Pre Focus (APF) P15D 30 Bulb holder

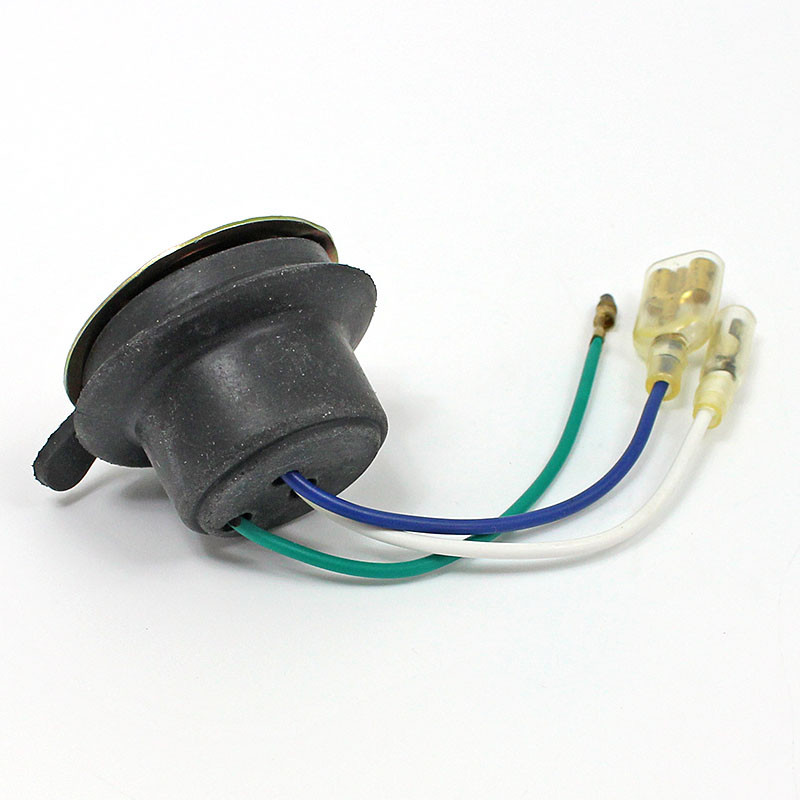

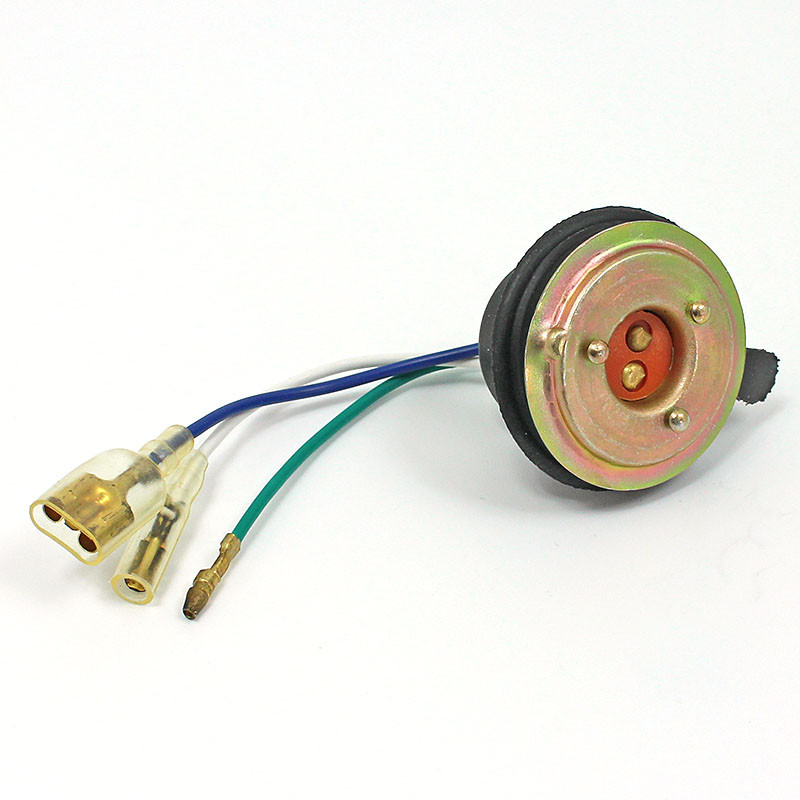

Double contact bulb holder for American Pre-Focus P15D 30 double contact base bulbs. Removeable rubber boot surround. Metal holder front plate maximum 44.5mm diameter with three spring loaded studs that locate and twist into the slot holes in the focus plate on the bulb base. One raised locating notch on outer face plate.  16.5mm outer diameter metal holder/socket with 15.5mm inner diameter. Two live connection leads and one earth - Green, earth (bullet connection); White, low beam (socket connection); Blue, high beam (spade connection).

Bulbs are available in 6 or 12V and power outputs from 25/25W for motorcycle and scooter headlamp applications and hight wattages for car and commercial applications. Bulbs feature a 15mm diameter cap with a 30mm diameter focus plate with three distinctive comet shaped slot/holes. See bulbs B5655, B5659B, B5679B, B5600, BA5676 and BA5677 as well as LED options - part numbers APFLED-H30, (12V and 24V negative or positive earth, warm white without a lens), APFLED-H30L and APFLED-H43L (6, 12 and 24V, positive or negative earth, warm or bright white with integral lens).

@ £7.40/  Each  (exc. VAT)  (inc. VAT @ 20%)
Total: £
